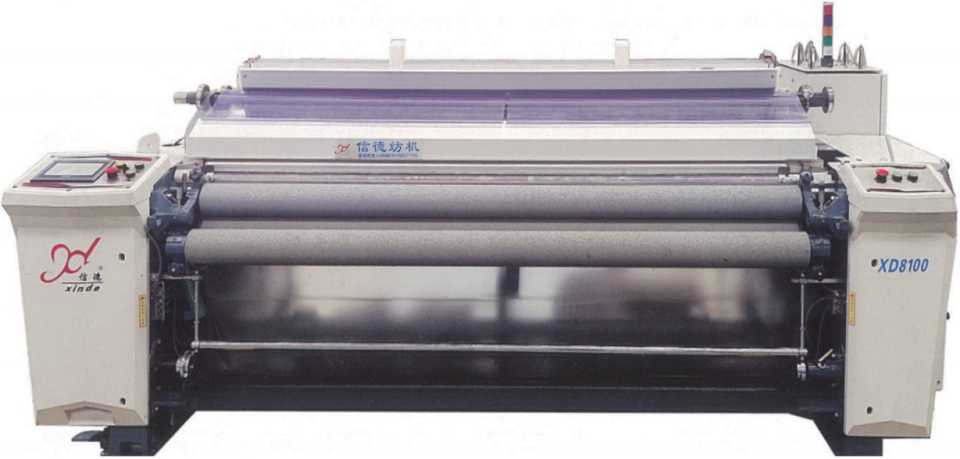

XD8100 Series heavy water jet loom

XD8100 series water loom is a new loom developed by using integrated wallboard and referring to the advantages of many models. The stability of the whole machine has been greatly improved, and the vibration and running noise of the equipment have been effectively improved. It is more suitable for the weaving of wide width fabric and high weft dense fabric.

Optional breadth:170-360cm
Weft insertion rate: most 2280 meter per minute

Speed: design highest rev 1200RPM (The actual speed determined in accordance with fabric specifications) Number of heald frame: 2、4,68 pieces, most
Cam opening 10 pieces, most dobby 16 pieces. Installed power: 2.2 KW, 2.6 KW, 2.8 KW, 3.0KW, 3.5KW, 4.0KW , 4.5KW
Range of weft density: 5-60 thread per cm
