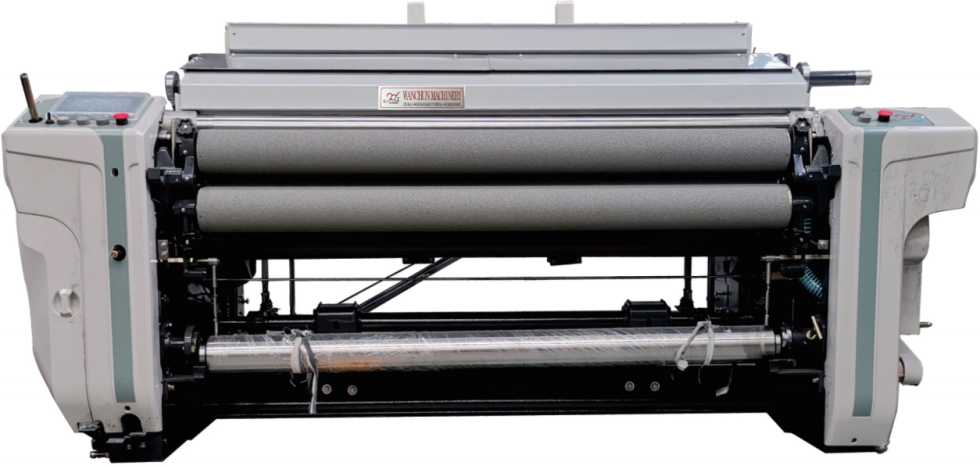

XD851 Series heavy water jet loom

D851 series high speed water jet loom is based on ZW300 series loom to re-optimize the machine structure and moving parts. Electronic let-off and electronic take-up, can be used to achieve dense weaving. It can be equipped with single pump or double pump, with intelligent electronic control system, optional 2、 4、 6nozzle, with high speed stable continuous operation, suitable for high speed stable weaving high density fabric.

Technical parameters

Optional width: 150-360cm

Weft penetration rate: up to 2280 m/min

Weft insertion method: mechanical, electronic Number of heald frames: 2.4, 6,8 pieces, cam openings up to 12 pieces, dobby up to 16 pieces Weft density range: 5-60/CM

Warp let-off crimp: mechanical, electronic (variable Weft density weaving can be realized).
