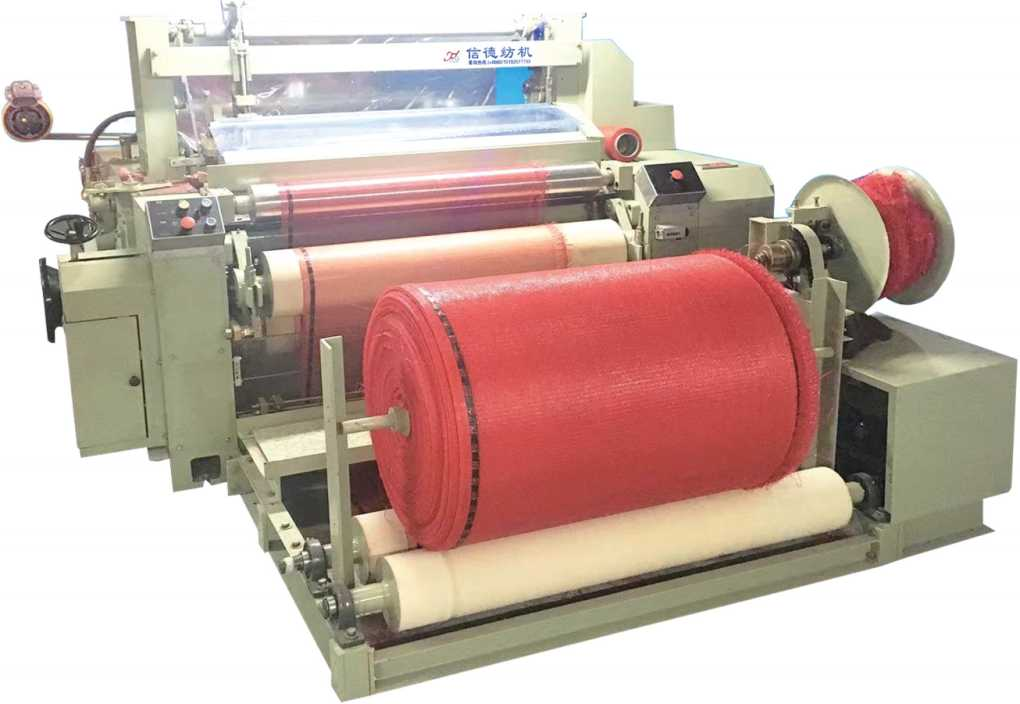

XD608 Series High Speed Plastic Knitting Machine

Reed width:190cm.230cm.280cm.340cm,430cm.530cm

Opening: the cam

Drive mode: crank four bar linkage

Methods: warp creel directly and actively feeding type.

Power: the main motor: 2.2kw 3.7kw

Motor control: 1.15kw

Electrothermal cutting: 1KW

Cloth: automatic control motor tension (maximum winding diameter is 1200cm)

Weft insertion way: mechanical or electronic weft storage type (electronic single jet or electronic double)

Dehumidification: squeeze water suction type

Design speed:

190 machine:600-800rpm

230 machine: 500-700rpm

280 machine:400-600rpm

340 machine:300-500rpm

430 machine:260-400rpm

530 machine:200-350rpm

Braided line diameter: 500D-2000D
